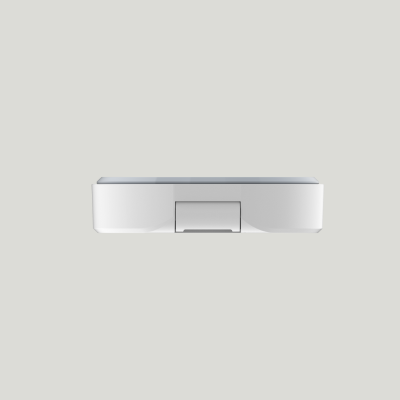

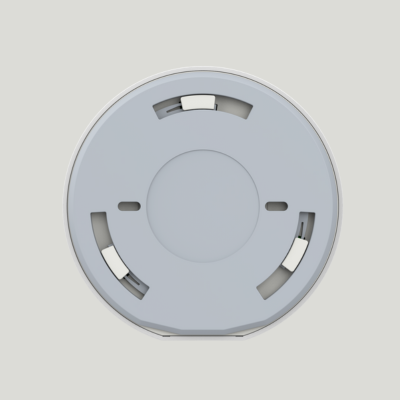

VS330-868M - Cubicle Occupancy Sensor

SKU VS330-868M
Original price €154,00 - Original price €154,00
Original price
€154,00
€154,00 - €154,00
Current price €154,00

VS330 is a LoRaWAN® bathroom occupancy sensor providing a cost-effective solution for monitoring the occupancy status of the bathrooms and the cubicles of a public toilet in different scenarios. VS330 has combined dual technologies,Time-of-Flight (ToF) technology and Passive Infrared (PIR) sensor to identify the human body and motions with a smart logic and an industry-leading accuracy exceeding 99.5%. VS330 could easily adjust to different scenarios with 100% anonymity and low power consumption.

VS330 could be managed by integrated systems and it allows users to monitor the occupancy and trigger linkage to control other devices via a web browser or mobile App remotely. Damp-proof coating inside ensures it working well under various conditions.

Features

  • High detecting accuracy based on Time-of-Flight (ToF) technology and Passive Infrared(PIR) detection with maximal possibility and industry-leading accuracy of over 99%
  • 100% anonymity and GDPR-compliant to detect space occupancy and human detection
  • Real-time update and ultra-low power consumption
  • Effective in static or motion applications with low mistake rate
  • Effective in low-light or completely dark environments
  • Damp-proof coating inside the device to ensure the device works well in various conditions of bathrooms and other scenarios
  • Adjustable sensor angle enables multi-mounting methods for various applications
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers



Measuring Range

  • ToF FoV: 27 °
  • Detection Range: 0.040 ~ 3.500m
  • PIR Detection Area: 80 °
  • Detection Distance: Maximum 2.5m
  • Sensor Adjustable Angle: 0°, 15°, 30°, 45°, 60°, 75°
Documentation & Downloads for VS330-868M
