About the product
Modern and smart design

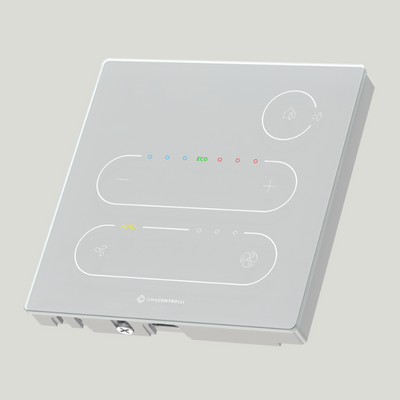

High-end technology packed in just a 14 mm thick glass panel makes it one of the slimmest devices on the market. The user-friendly interface of the front glass panel with interactive icons makes the TP fit perfectly in commercial buildings, hotels, offices, meeting rooms, and other places that need a touch of class.
Touch Point (TP) panels interact with the user with LEDs that indicate the working status of the device.
Ease of installation and configuration
Install the TP your way. Suitable for surface and flush mounting, the Touch Point panel offers effortless configuration using network protocols or a built-in USB port, even without an external power supply.
The Touch Point is factory-equipped with the two most popular open communication protocols, Modbus and BACnet, which are selectable using a DIP switch.
Select the colour, sensor type, and display option. The Touch Point is available in a variety of configurations, to suit your building perfectly. Available with a set of temperature, CO2, and humidity sensors. The TP-C version is equipped with temperature and CO2 sensors.

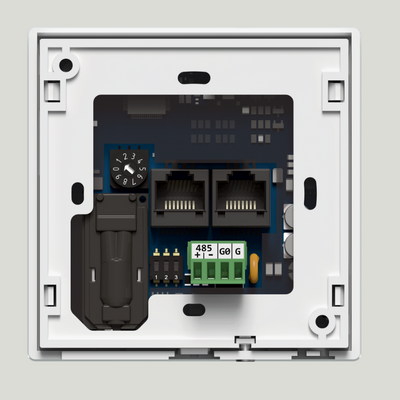

Five touch function buttons
USB type C interface
DIP switches for configuration
Range: 0 ‚Äì 50¬∞C
Accuracy: +/- 0,5¬∞C
Resolution: +/- 0,1¬∞C
Range: 400 ‚Äì 4000 ppm
Accuracy: +/- 3% of reading
Stability: < 2%
Free software iSMA Tool & iSMA Configurator
20 - 34V DC
24V AC ¬± 20%
