About the Product

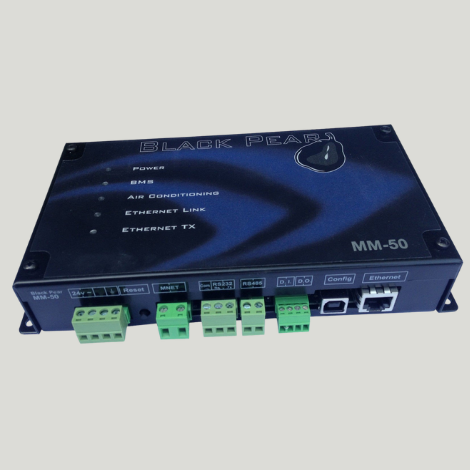

Panasonic Air Conditioning Interface Gateway - BACnet
Our range of Black Pear Panasonic HVAC interfaces is the most versatile on the market, connecting directly to the 2-wire HVAC bus. The integrated LCD display provides an engineer's interface for local control, removing the need for a central controller and separate interface. The result saves time, space and most of all money! Commissioning is made simple with free USB-based configuration software. The units will operate on systems with or without a central controller and support BACnet/IP protocols. Each Black Pear will support 64 x FCU units.
Protocols Supported: BACnet/IP
Air conditioner connection: Panasonic 2-wire communication bus
Communications platforms: Ethernet, RS232, RS485, 2-wire Network Bus
Control: Set point, Return Air, Mode, Vane position, Fan speed, Inhibit, Error Code, On/off, Air Direction
Dimensions: 211mm x 118 mm
Backlit graphic display: 62mm x 62mm and navigational buttons *(Available on D models only)
Power requirement: 24 a.c., 5 VA
Model: PB-64 - BACnet
