M-Bus Converter RS485
About the product
NOTE: This product supports only BUS Network Topology on the MBus port.
Any other network topology is not supported and could cause errors on the network.

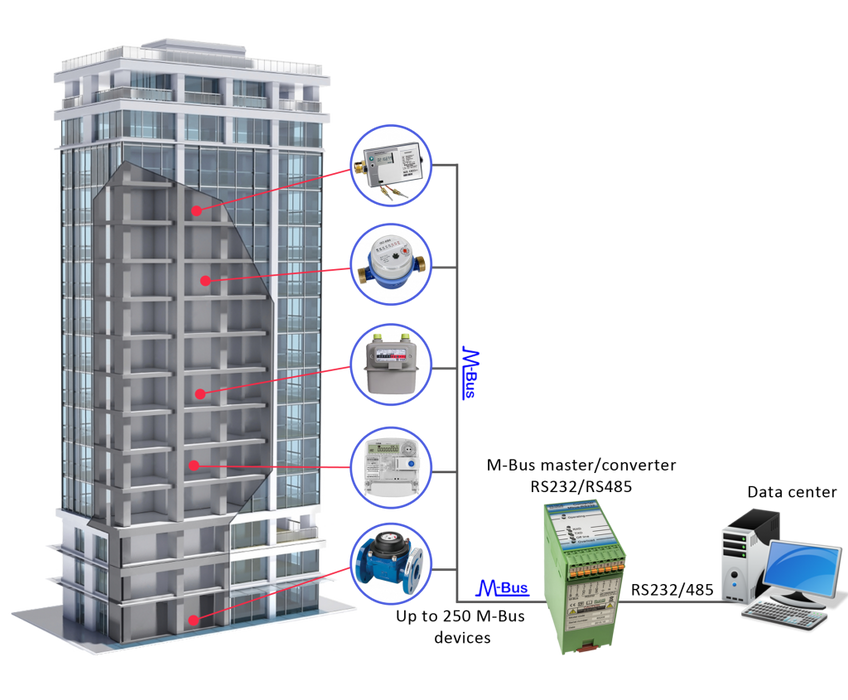

The M-Bus is a bus optimized for the reading of measurement instruments like energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc. Nowadays, more and more manufacturers implement the M-Bus interface in their counters, making it the ideal basis for remote reading applications. Our M-Bus Master (M-Bus converter) is universal and simple M-Bus Master that can be connected up to 250 M-Bus devices. This device also convert M-Bus signal to RS232 or RS485 so basically you can integrate this device in your remote data acquisition systems with ease.
- RS485 transmission direction: Automatic
- MAX amount of M-Bus devices: Up to 250 units of any M-BUs devices (375mA)
- M-Bus short connection protection: Yes
- Power supplier: 90-250V ~, 50-60Hz
- Mounting type: on DIN rail
|Description||M-Bus to RS232 / RS485 converter technical specification|
|M-Bus permissible load||up to 250 units of any M-Bus devices (375 mA)|
|RS485 / RS232 direction control||Auto|
|Protection of MBus short connection||Yes, triggering current 500 mA|
|Short connection reaction time||Programmable - 1 - 4s (recover 10 - 60s)|
|M-Bus line voltage||Mark - 36 - 40 V. Space 24 - 27 V|
|Data transfer speed||From 300 to 9600 bods|
|Galvanic isolation||Power– RS232 / RS485 Power – M-Bus M-Bus - RS232 / RS485|
|Insulation breakdown voltage||> 1,5 kV|
|Power supplier||90-250V~, 50-60Hz|
|Power consumption||Not loaded up to 3,5W, fully loaded up to 20W|
|Enclosure||DIN rail mountable|
|Dimensions||45 mm x 75 mm x 110 mm|
|Operating conditions||From - 30 oC to + 50 oC / 80 % RH, without condensate|
