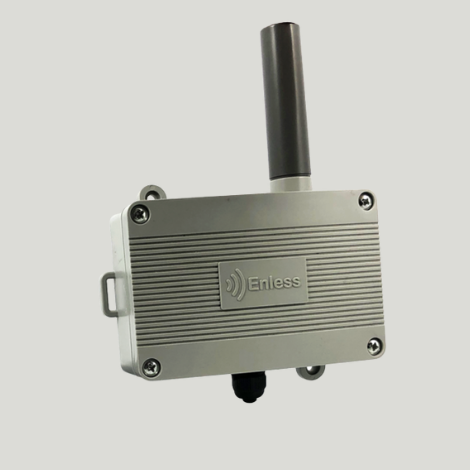

LoRa / LoRaWAN Analog Transmitter - 4/20mA Interface

€199,81
SKU TX 4/20 mA 600-035

You might have tried using Wireless Sensors in the past to find out that they don't work 100% of the time. Just take a look at what other Niagara 4 BMS Engineers had to say about them in this post here.

Issues like short battery life involve extra site visits. And unplanned visits can be costly when they come out of your own pocket.

Another costly and time-consuming problem is the loss of signal. Configuring the sensors to avoid concrete walls involves many labour hours.

So you will be happy to learn that you can install these sensors without ever worrying about the battery life and the loss of signal.

This LoRa / LoRaWAN 4/20mA analogue radio transmitter is specifically designed for industrial applications (construction industry – water management – rail industry, etc.).

Self-powered, it connects to all types of analogue probes with 4/20mA interface and reassemble the signal.

This transmitter can meet all types of applications including pressure, flow, fluid levels (water, fuel oil, gas, etc.) / gauges (ultrasonic probes), etc.

The robustness of our LoRa / LoRaWAN transmitter – IP 65 enclosure – and its high environmental tolerance (-20°C / +55°C) allow it to withstand any type of environment.

This product is LoRa/ LoRaWAN compatible. It allows you to build an operated or private network. In LoRaWAN public mode, the data is retrieved through the transmitter and sent to the LoRa network operator cloud at a flexible frequency. In LoRa Enless Wireless private mode, the data is transmitted over the radio to our Modbus receiver, which is usually connected to a gateway. In LoRaWAN’s private mode, the data flows directly from our transmitters to the gateway.
High and low thresholds can be viewed via the supervision system in place which also allows the configuration of alerts.

Setup Instructions

Technical Specifications

Dimensions L 118 x H 79 x W 43 mm
Enclosure and IP rating ABS IP 65
Power supply Replaceable D 3.6 V Lithium battery - Low battery alert
Battery autonomy / Periodicity 5 years battery life with 5mn periodicity / Configurable periodicity
Configuration / Installation Radio
Interface 4/20 mA - Terminal block
Transmitter working temperature - 20°C / + 55°C
LEDs 3 LEDs
Certification CE



If you need help selecting your wireless sensors please
 read our 5 min guide.

Documentation & Downloads

Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 Analog Transmitter - 4/20mA Interface Data Sheet
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 LoRa / LoRaWAN Installation Instructions
