iSMA-D-PA7C-B1-UK
About the product
High-quality touch display
The 10-point capacitive touchscreen with a 16: 9 aspect ratio and 1366x768 resolution offer exceptional comfort in a small package.
Industrial grade housing
This robust aluminium body made of the highest quality materials allows for an excellent user experience and long service life.
Various installation options

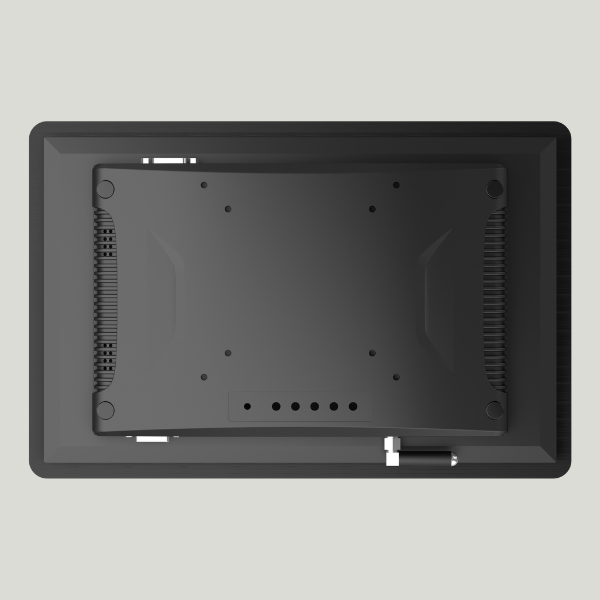

VESA compatibility offers wall mounting of the panel on any surface as well as mounting into the control cabinet with a dedicated frame.
iSMA Android Application
By increasing facility cost efficiency, and simplifying the use of web-based controllers, the iSMA Android Application is the most versatile, multivendor BMS visualization platform on the market. Available with 7, 10, and 15-inch industrial PC panels, it enables unlimited visualization possibilities for any HTML-based controller.
Wireless Capability
The Android panel offers an onboard RJ45 port for Ethernet cable connection but can be reached wirelessly with the WiFi card.
Worldwide operability
The UL-certified power adapter offers a wide range of operating voltage (110 V-240 V). Depending on the country, the panel is shipped with an EU; US or UK power adapter.
Display
- Size 7’’
- Aspect ratio 16:9
- Resolution 1024x600
- Contrast 800:1
- Luminance standard 250 nit
- Response time 6.5 ms
- Active Area (mm) 154.81x86.52
- Display colors 16.7 M
- View angle 75/75/75/75
- 10-point capacitive touch screen
Interface
- IP (RJ45)
- TF/SD card
- 2 RS232
- 1 USB OTG (mini USB)
- 2 USB 2.0
Power
- 100-240 V AC (12 V DC), 50/60 Hz
- Power consumption: ≤ 33 W
- Power standby: ≤ 2 W
Installation
- Wall mounting - compatible with VESA system
- Cabinet door mounting
