iSMA-B-MIX18-IP

€439,30
SKU iSMA-B-MIX18-IP
About the product

One of the most easy to setup and most flexible IP IO Modules on the market. This module provides the best value per point with the lowest footprint and will make you deliver any BMS project on time and budget.

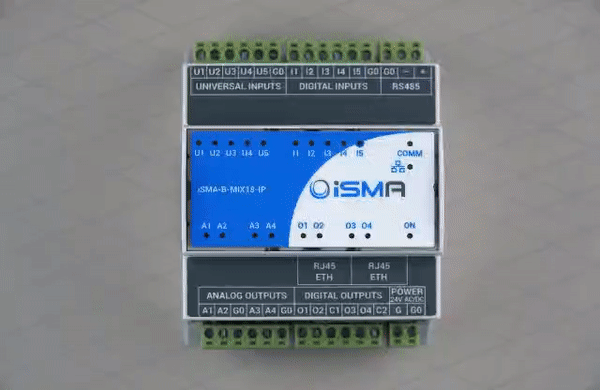

The iSMA-B-MIX18 of the MIX series has been designed for building distributed control systems using JACE or AAC20 devices. All the MIX Series modules have been equipped with the most commonly used types of I/O in building automation (MIX of all types of I/O in one unit). This module is factory-equipped with the two most popular open communication protocols: Modbus (TCP/IP) and BACnet (IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.

Built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.



This module is fully compatible with any Modbus or Bacnet system including the following: Tridium Jace3, Jace6, Jace8000 CompatibleTrend IQ3, IQ4 Bacnet IP CompatibleSiemens PX rangeCylon Bacnet controllersSchneider Electric StruxureWare Bacnet controllersOSS NeOSS building management controllerPriva Blue IDDistech EC BosDELL EDGE GATEWAY 5000Compatible with any Honeywell Centraline HawkDelta Controls Compatible IO Modules

Inputs & Outputs

5xUniversal Inputs (5UI)
All universal inputs have 16-bit resolution which support the following types of inputs:

  • Temperature input support the following types of sensors: 10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000, Ni1000
  • For sensor Pt1000 and Ni1000 use only 16bit resolution
  • Voltage input 0-10VDC: input resistance 100kΩ accuracy ±0,1% measurement resolution 3mV@12bit and 1mV@16bit
  • Current input 0-20mA
  • Resistive input 0-1000kΩ: measurement resolution for 20kΩ load 20Ω@12bit and 1Ω@16bit
  • Dry contact input

5xDigital Inputs (5DI)

  • Dry contact inputs
  • Fast pulse counter up to 100Hz

4xAnalog Outputs (4AO)
All analog outputs are equipped with 12-bit ADC provides10 mV resolution and accuracy less than ±0,5%. They support the following output types:

  • Output 0-10V DC maximum load up to 20mA
  • PWM: 0,01Hz, 0,1Hz, 1Hz, 10Hz, 100Hz

4xDigital Outputs (4DO)

  • Relay output (NO) max. 3A, 250 VAC/30 VDC

Platform

  • Cortex-M3

Communication

  • Interface RS485 half duplex
  • 2xEthernet with built in switch
  • Up to 99 devices on the bus
  • Protocols: MODBUS or BACnet
  • Baud rate: 2400 to 115200 bps

Power supply

  • 24V AC/DC

Housing

  • Dimension: 88x110x62 mm.
  • Construction: plastic, self-extinguishing (PC/ABS)
  • DIN rail mounting (DIN EN 50022 norm)
  • Cooling: internal air circulation

Environments

  • Operating temperature: -10°C to 50°C
  • Storage temperature: -40°C to 85°C
  • Relative humidity: 5 to 95%, no condensation
  • Ingress Protection Rating: IP40 – for indoor installation

Do you have a question about this product?

Documentation & Downloads for iSMA-B-MIX38


In the DOWNLOAD session you can find:
The ISMA driver for Niagara, which contains the ISMA device Palette
ISMA configurator which is needed for updating firmware and configure modules
