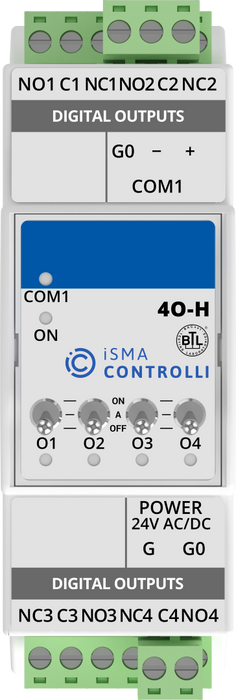

iSMA-B-4O-H

€239,20
SKU iSMA-B-4O-H
About the product

iSMA-B-4O-H is one of the most easy to setup and versatile IO modules. Compatible with almost any BMS works on either Bacnet or Modbus. It has 4x Digital Outputs (4DO) and can be hand operated. Once you purchase one you will be up and running in minutes and safely use it on any project.

This module is fully compatible with any Modbus or Bacnet system including the following: Tridium Jace3, Jace6, Jace8000 CompatibleTrend IQ3, IQ4 Bacnet IP CompatibleSiemens PX rangeCylon Bacnet controllersSchneider Electric StruxureWare Bacnet controllersOSS NeOSS building management controllerPriva Blue IDDistech EC BosDELL EDGE GATEWAY 5000Compatible with any Honeywell Centraline HawkDelta Controls Compatible IO Modules

Inputs & Outputs:
  • 4x Digital Outputs (4DO)
  • Relay output (NC/NO) max. 8A, 250V AC/30 VDC
Platform
  • Cortex-M3

Communication

  • Interface RS485 half duplex
  • Up to 99 devices on the bus
  • Protocols: MODBUS or BACnet
  • Baud rate: 2400 to 115200 bps

Power supply

  • 24V AC/DC

Housing

  • Dimension: 35x110x62 mm.
  • Construction: plastic, self-extinguishing (PC/ABS)
  • DIN rail mounting (DIN EN 50022 norm)
  • Cooling: internal air circulation

Environments

  • Operating temperature: -10°C to 50°C
  • Storage temperature: -40°C to 85°C
  • Relative humidity: 5 to 95%, no condensation
  • Ingress Protection Rating: IP40 – for indoor installation

Do you have a question about this product?

Documentation & Downloads for iSMA-B-4O-H

In the DOWNLOAD session you can find:
The ISMA driver for Niagara, which contains the ISMA device Palette
ISMA configurator which is needed for updating firmware and configure modules


For any help please contact our support here
