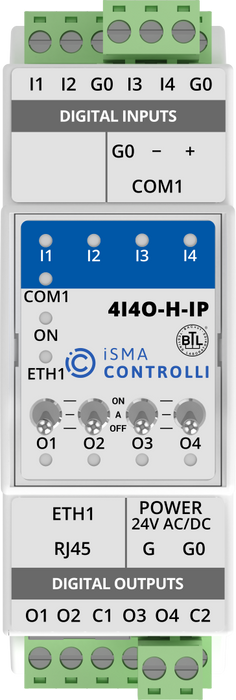

iSMA-B-4I4O-H-IP

€305,90
SKU iSMA-B-4I4O-H-IP
About the product

 MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINI can be chosen, all inputs and outputs are unified among our products. One feature that makes these two product groups different is hand operating switches, in some applications, it is required. Moreover, all I/O modules have BTL, CE and UL certificates.

Like in the case of the MIX modules IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols Modbus (TCP/IP) and BACnet (IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.

MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.



ISMA-B-4I4O-H-IP is one of the most easy to setup and versatile IO modules. Compatible with almost any BMS works on either Bacnet or Modbus. It has 4 Digital Inputs and 4 Digital Outputs and can be hand operated.

This module is fully compatible with any Modbus or Bacnet system including the following: Tridium Jace3, Jace6, Jace8000 CompatibleTrend IQ3, IQ4 Bacnet IP CompatibleSiemens PX rangeCylon Bacnet controllersSchneider Electric StruxureWare Bacnet controllersOSS NeOSS building management controllerPriva Blue IDDistech EC BosDELL EDGE GATEWAY 5000Compatible with any Honeywell Centraline HawkDelta Controls Compatible IO Modules

In addition this module has inbuilt On/Off Logic for lighting application with Dali Systems.

Inputs & Outputs:

  • 4 x Digital Inputs (4DI)
  • Dry contact inputs
  • Fast pulse counter up to 100Hz
  • 4 x Digital Outputs (4DO)
  • Relay output (NO) max. 3A, 250V AC/30 VDC
 Platform:
  • Cortex-M3
Communication:
Interface RS485 half duplex
  • 1 x Fast Ethernet
  • Up to 99 devices on the bus
  • Protocols: MODBUS or BACnet
  • Baud rate: 2400 to 115200 bps
Power supply:
  • 24V AC/DC
Housing:
  • Dimension: 35x110x62 mm.
  • Construction: plastic, self-extinguishing (PC/ABS)
  • DIN rail mounting (DIN EN 50022 norm)
  • Cooling: internal air circulation
    Environments:
    • Operating temperature: -10°C to 50°C
    • Storage temperature: -40°C to 85°C
    • Relative humidity: 5 to 95%, no condensation
    • Ingress Protection Rating: IP40 – for indoor installation
      Do you have a question about this product?
      Documentation & Downloads for iSMA-B-4I4O-H-IP


      In the DOWNLOAD session you can find:
      The ISMA driver for Niagara, which contains the ISMA device Palette
      ISMA configurator which is needed for updating firmware and configure modules
