About the product
Now you can easily convert any BACnet MSTP/RS485 network¬†to Bacnet IP using our BACnet Router.
The BACnet Router¬†will transparently turn 2 x BACnet MSTP/RS485 networks each with up to 64 devices into Bacnet IP.
This will help you integrate large Fan Coil Controller networks into your favourite¬†Niagara 4 Controller or Supervisor (Niagara 4 Supervisor/IQVision etc, Jace 8000/TONN/HAWK, MAC6NL etc), as well as any other Bacnet IP¬†enabled controllers such as Trend IQ4, Schneider, Siemens and many others.

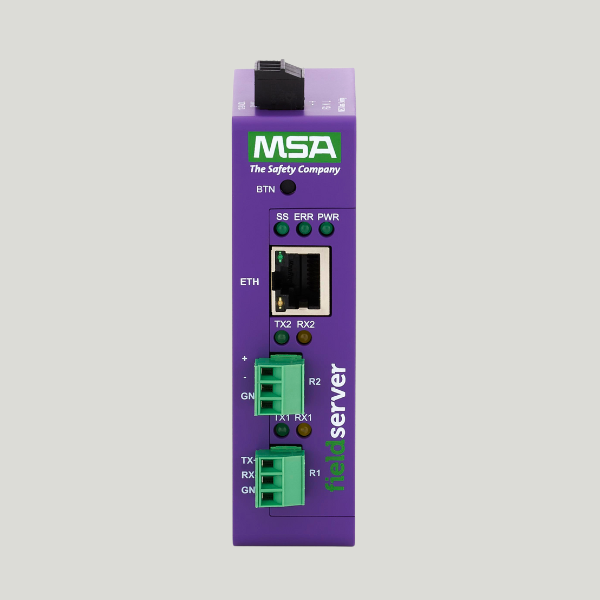

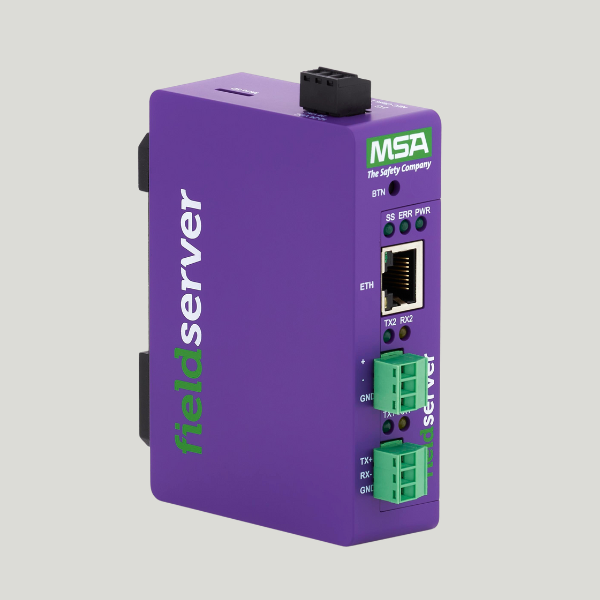

The BACnet Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP ‚Äì thereby allowing the system integrator to mix BACnet network technologies within a single BACnet internetwork. There are three physical communication ports on the
BAS Router. One is a 10/100 Mbps Ethernet port and the other two are RS-485 MS/TP ports.
The configuration is accomplished via a web page, just watch the instruction in this short 3-minute clip:
