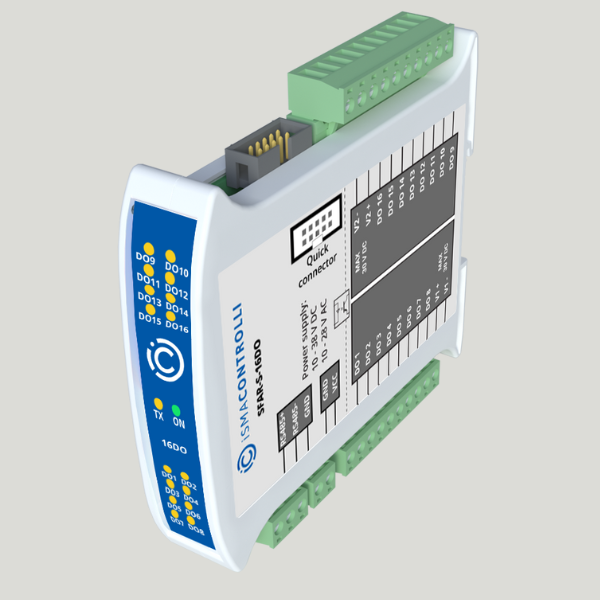

SFAR-S-16DO

€231,00
SKU SFAR-S-16DO
About the product

SFAR-S-16DO has 16x DO (Digital Outputs). Digital Outputs are PNP transistor output with maximum load 500 mA, 30 V DC. All outputs are isolated from the RS485 and power supply with use of optical isolators. Built-in RS485 interface allows to easy connection over Modbus RTU/ASCII protocol with a PLC makes the modules an external I/O. The use of 32-bit ARM core processor provides fast processing and communication with the baud rate from 2400 to 115200 bps. The module is equipped with a set of LEDs used to indicate the status of outputs, power supply and RS485 communication. This feature is useful for diagnostic purposes and helping to find errors. Built-in mini USB allows for initial configuration of the unit without power supply. To simplify installation the modules have been equipped with Quick Connector system. Using dedicated SFAR-S- LINK cable allows to connect up to 15 modules which provide both RS485 communication and power supply.

Key Features
• 16x opto-isolated Digital Output
• Every DO is protected against inductive load by
built-in diode
• Watchdog function
• Built-in LEDs for device status indication
• Modbus RTU/ASCII communication
• Baud rate: 2400 bps to 115200 bps
• Up to 128 modules on the bus
• Dedicated TCP/IP to Modbus RTU/ASCII
gateway device SFAR-S-ETH
• Built-in mini USB type B port for configuration
• Fast and easy connection with SFAR-S-LINK
• Space-saving housing, DIN rail mount

Specification

Digital Outputs (DO)

• Transistor output (PNP) max. 500 mA, 30 V DC Platform
• ARM Cortex-M3 Communication
• Interface RS485 half-duplex
• Up to 128 devices on the bus
• Protocol: Modbus RTU/ASCII
• Baud rate: 2400 to 115200 bps
• Interface mini USB type B

Power supply

• 12-24 V DC ± 20%

Housing

• Dimension WxHxD: 22.7x110.9x119.1 mm
• Construction: UL approved, self-extinguishing plastic (PC/ABS)
• DIN rail mounting DIN (DIN EN 50022 norm)
• Cooling: internal air circulation

Environment

• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 85°C
• Relative humidity: 5% to 95%, no condensation
• Ingress Protection Rating: IP40 – for indoor installation
